Overview

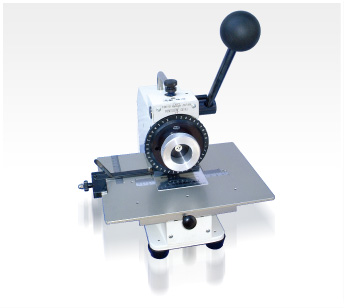

Operated simply by a dial and handle, this model provides an easy way to mark manufacturer numbers, lot numbers, product names, model numbers or any text of your choosing onto name plates in materials such as metal, aluminum and plastic.
(Choice of character rings from 1.5 to 4.0 mm. 5.0 and 6.0 mm rings also available as options.)
 |
|---|
 |
Specifications
| Model | MODEL KD-4N |
|---|---|
| Name plate size | 100 × 200 mm |
| Name plate thickness | 0.3 to 1.5 mm |
| Marking area | 125 (horizontal) × 90 (vertical) mm |
| Marked name plate materials | Aluminum, brass, iron, SUS*, plastic * On some machines, the punch depth may not be obtained on SUS. |
| Character size & pitch | 1.5 (2.08 mm pitch) 2.0 (2.08 mm pitch) 2.5 (2.76 mm pitch) 3.0 (2.76 mm pitch) 3.5 (3.54 mm pitch) 4.0 (3.54 mm pitch) |
| Characters | A to Z, 0 to 9, .,/, -, & |
| Font | Kintsune Standard (Maru Gothic) |
| Blade edge shape | Sharp face |
| Machine dimensions | 300 × 300 × 250 mm (W×L×H) |
| Weight | Approx. 10 kg |
